High-Precision 3D Inspection Scanners

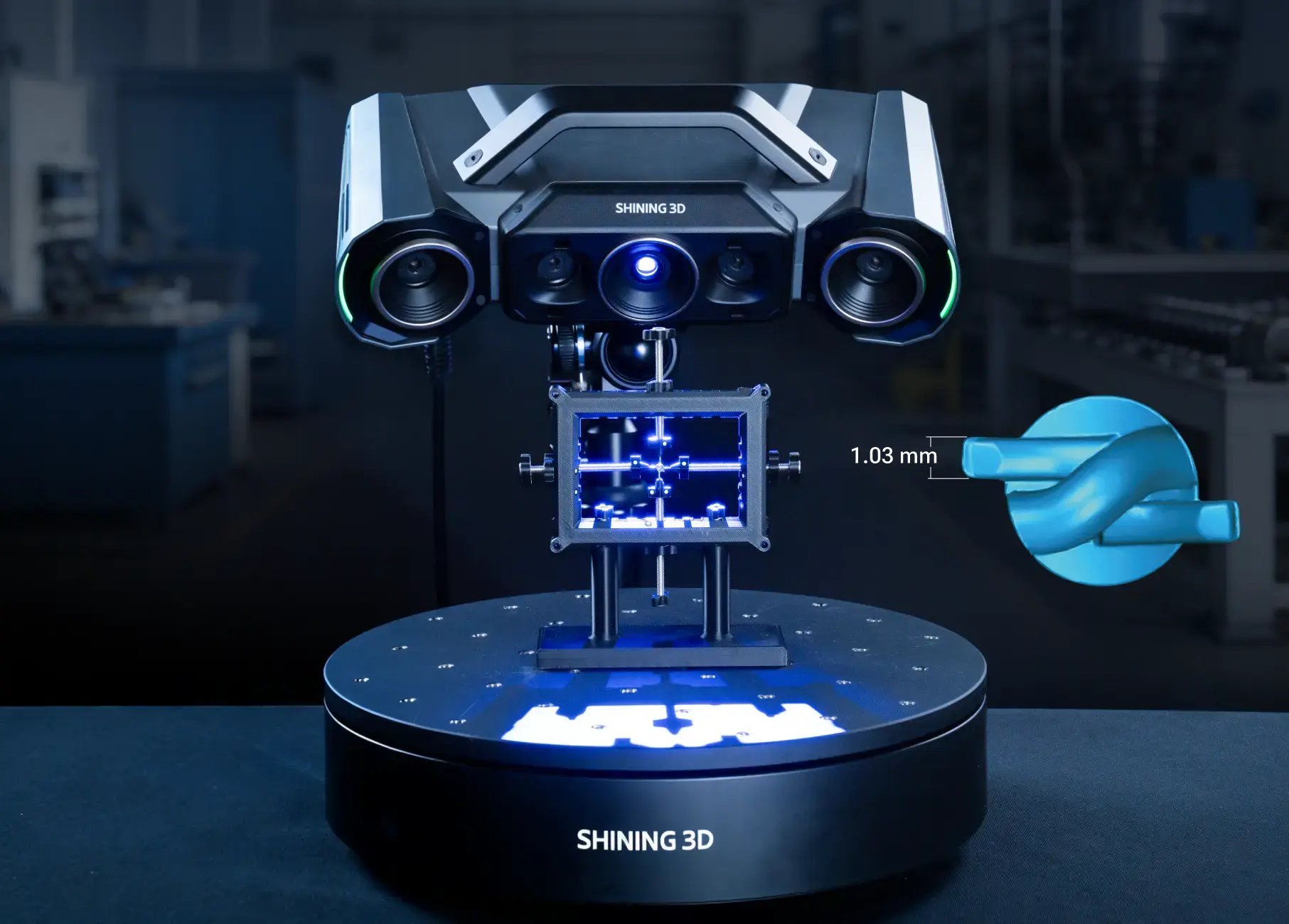

OptimScan Q12/Q9 HD features two scan ranges that can be switched with a single click, eliminating manual adjustment of aperture and focal length. Scanned data from different ranges can be seamlessly fused in the software, ensuring both efficiency and detail.
Large Range: 220 × 150 mm
Small Range: 80 × 50 mm

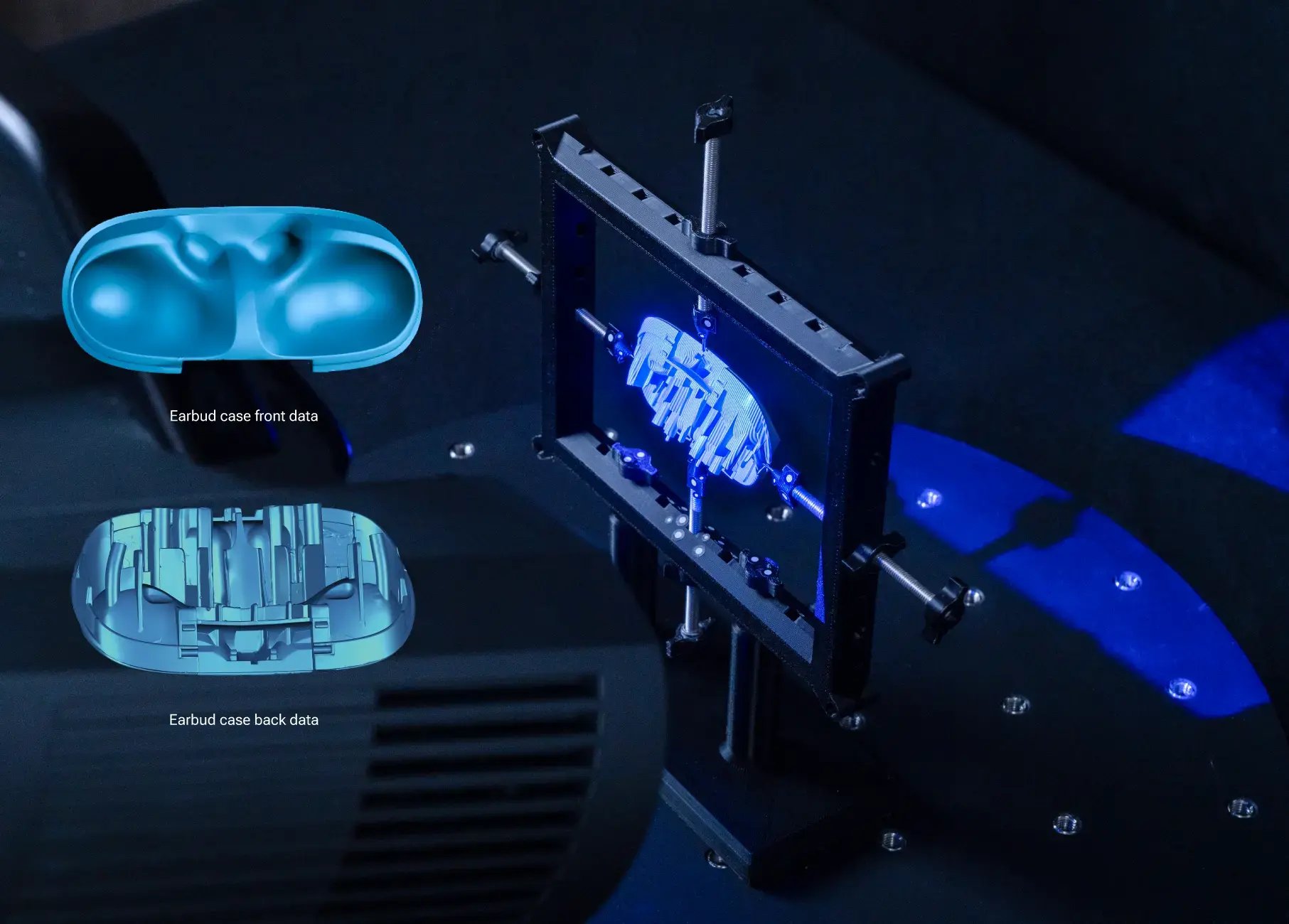

The monocular-stereo fusion function can effectively increase data coverage and improve the integrity of the scanned data, such as the common turning corners and joints of industrial parts.

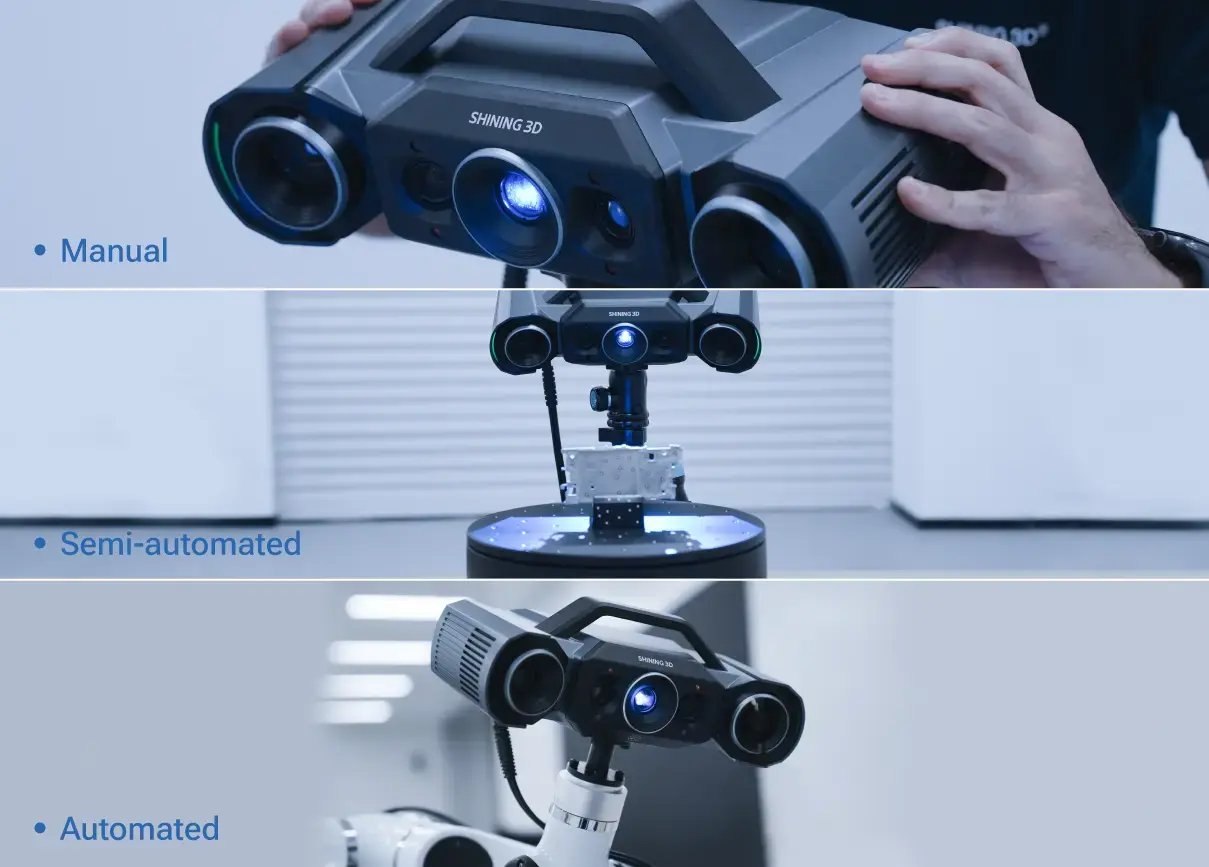

OptimScan Q12/Q9 HD adapts to your scanning needs with three flexible operation modes.
Manual: OptimScan Q12/Q9 HD is compact and easy to carry, giving operators full control and flexibility.

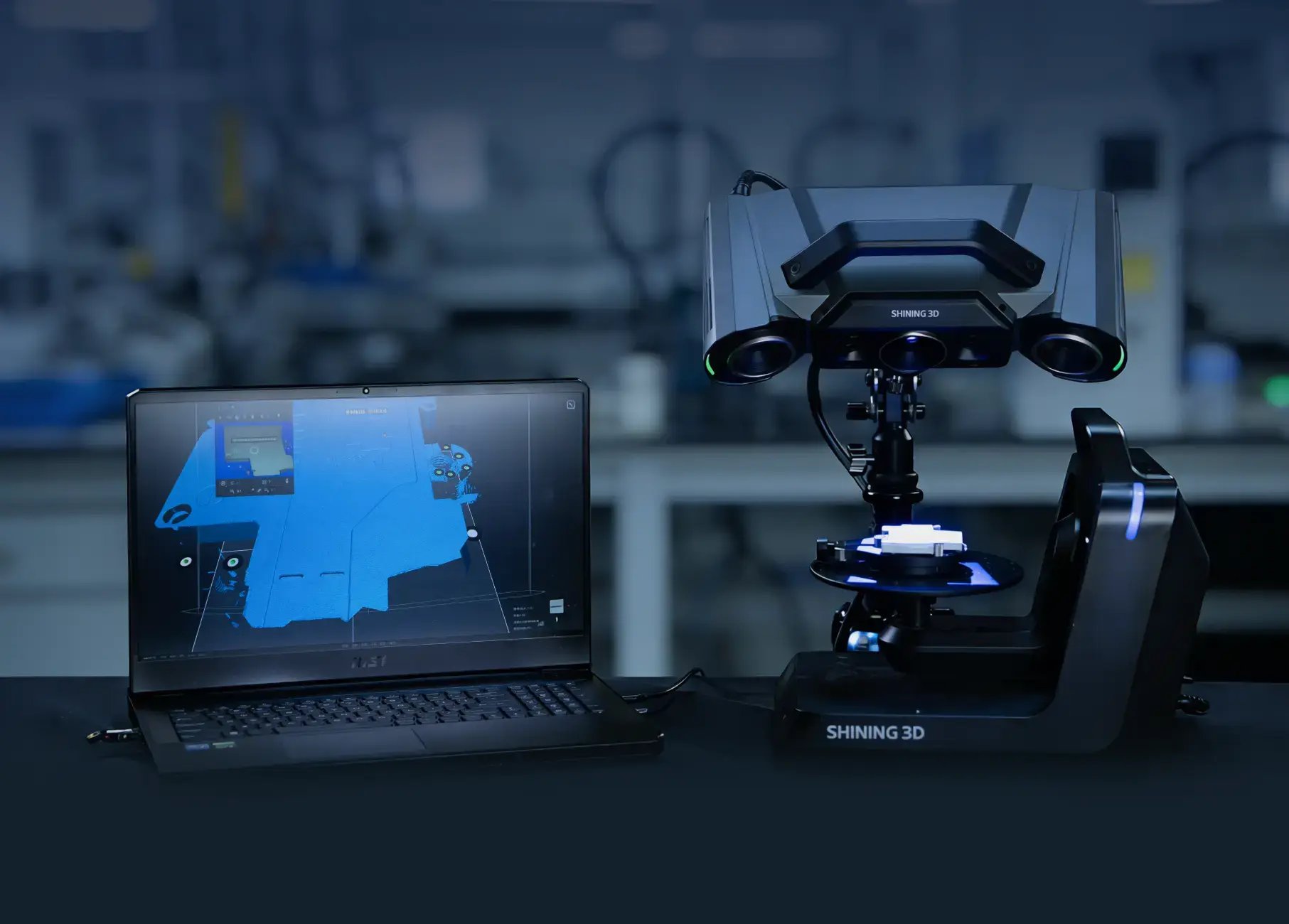

Semi-Automated: Combine a fixed tripod with an automatic turntable supporting up to 20 kg for enhanced efficiency and repeatability.

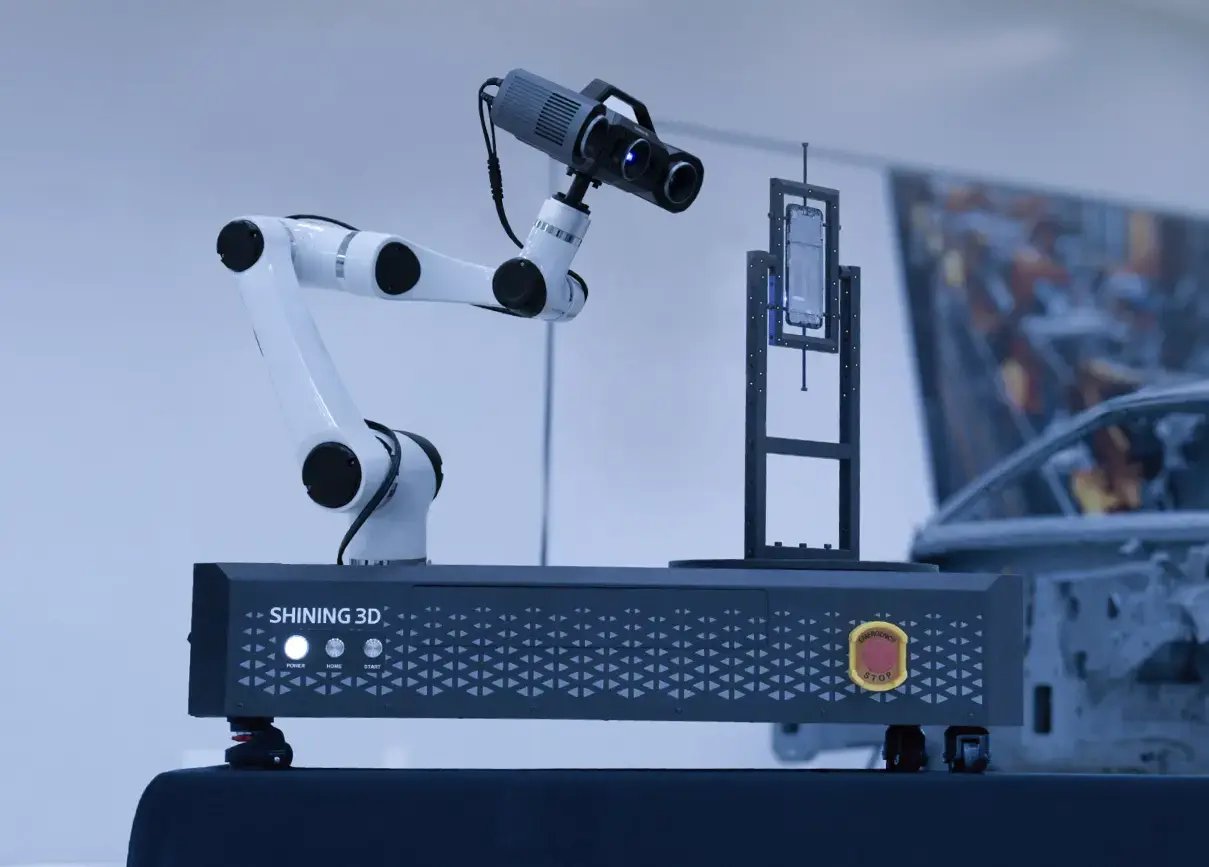

Fully Automated: Seamlessly integrates with industrial robots for precise, repetitive inspection tasks, making it perfect for series measurement tasks.

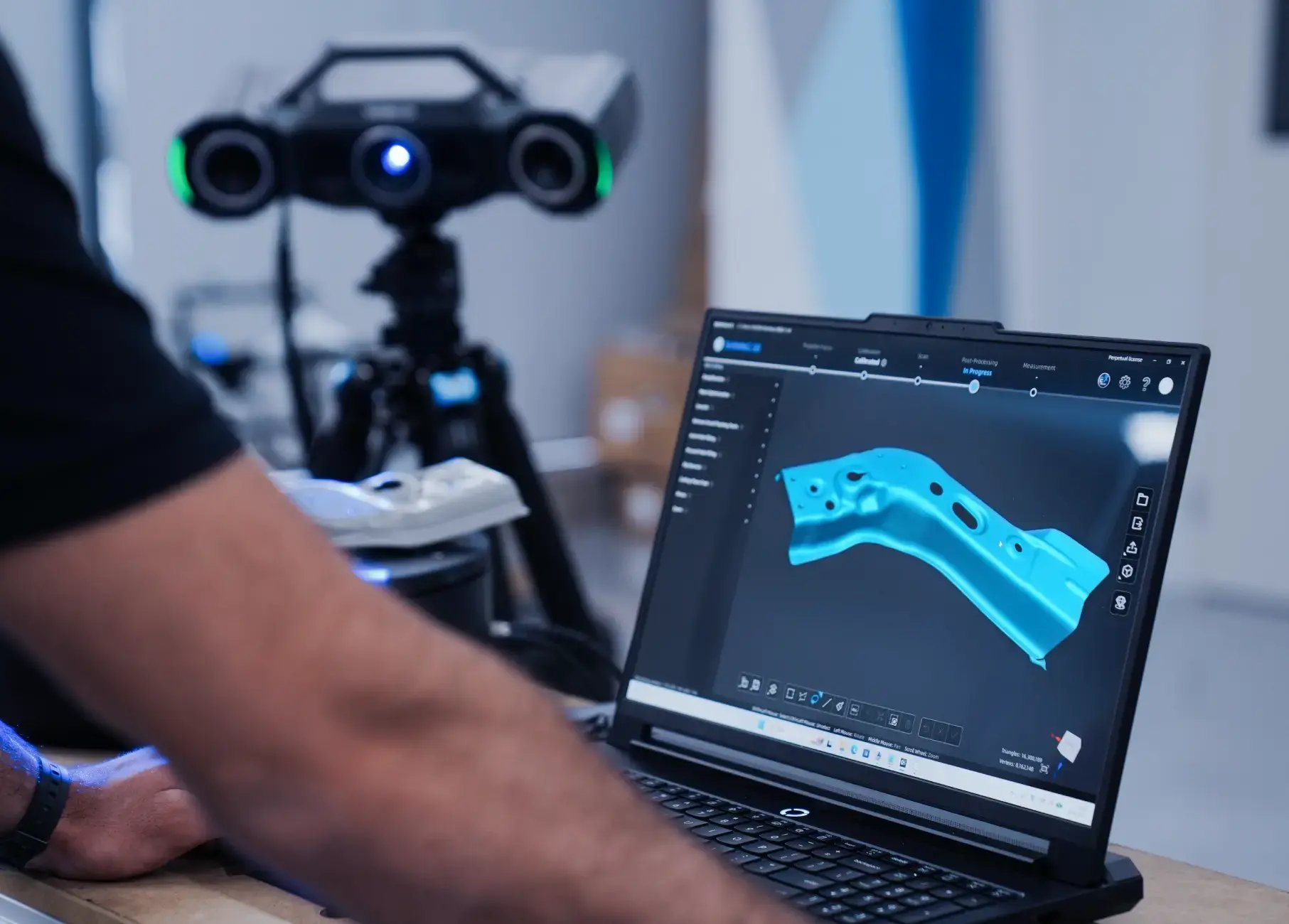

The OptimScan Q12/Q9 HD comes with powerful, continuously updated software. Scan as much as you want, all year round, with no hidden fees or additional costs.
Scanning Template
Vibration Detection
Temperature Control
Background Cutting

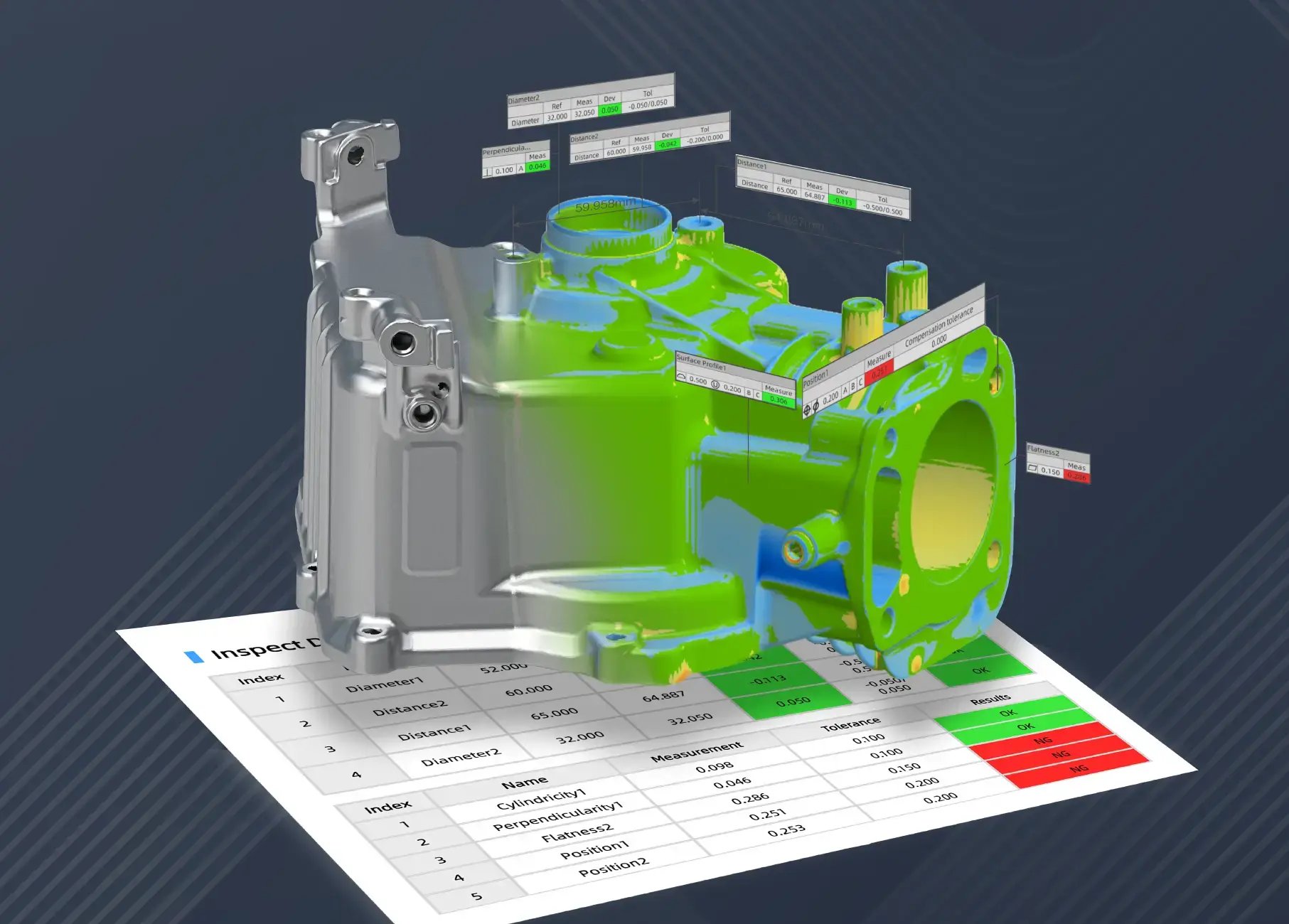

SHINING3D Inspect delivers a streamlined, modular, and customizable approach to 3D inspection, simplif ying workflows from data acquisition to reporting. The software is suitable for dimensional inspection and quality control of components across industries such as automotive, civil aviation, and precision manufacturing.

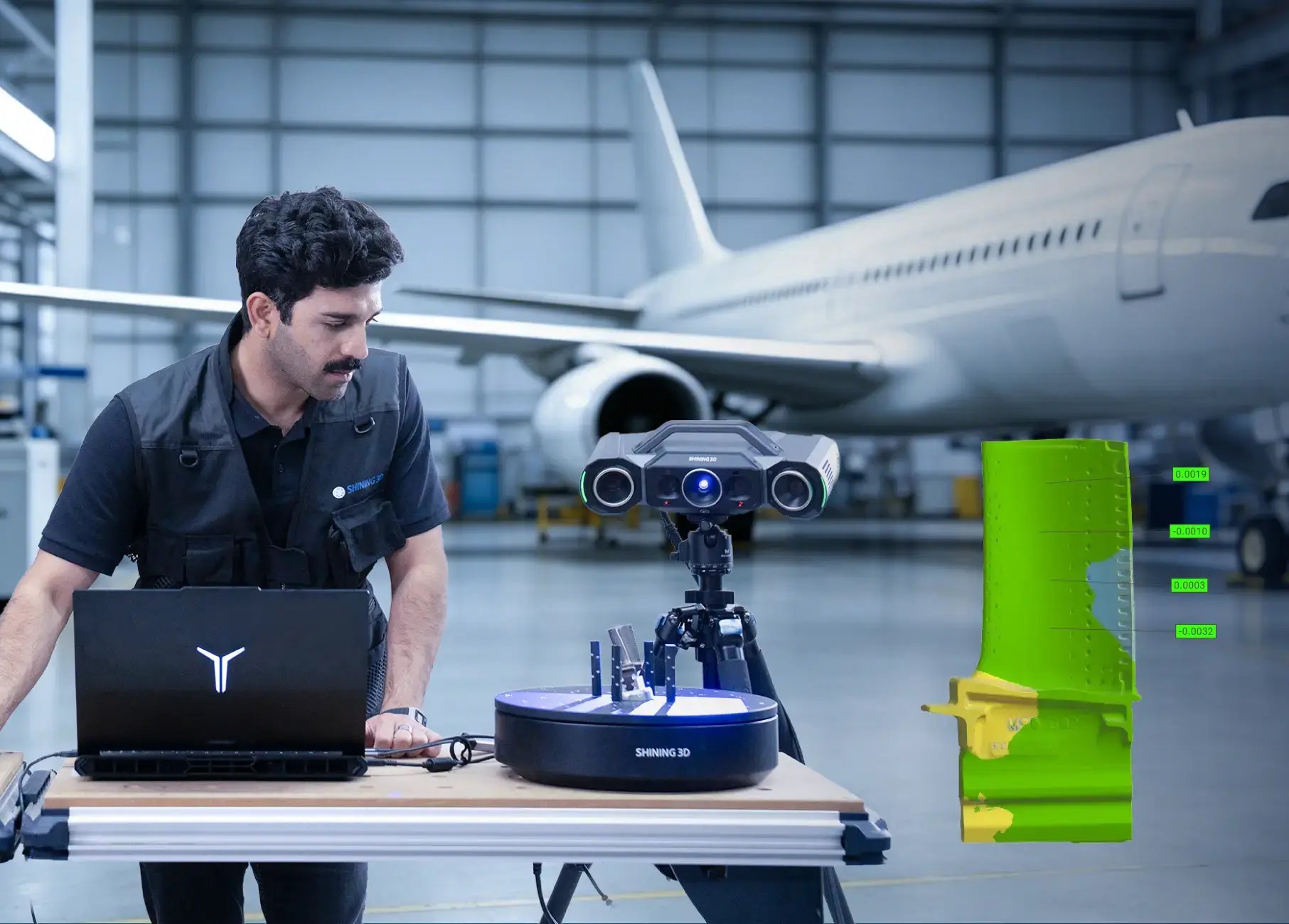

Backed by PTB-certified capability, it ensures traceability in every measurement. Independently developed by SHINING 3D, it represents strong in-house expertise and
continuous innovation
OptimScan Q12/Q9 HD can seamlessly integrate with intelligent 3D inspection system, enabling fully automated workflow from scanning to report generation.
Workflow:
1. Path Teaching
2. Automated 3D Measurement
3. Automated 3D Inspection
4. Automated Report Generation
INSPECT ON THE MOVE
-%e5%8f%8d%e7%99%bd2ee1b.png)
SHINING 3D Metrology brings precision measurement from isolated labs directly to the shop floor and beyond, enabling real-time quality assurance across every stage of production.
Discover how integrating our scanners into your workflow can enhance efficiency and help you achieve remarkable results.
Application Scenarios: Precision machined parts such as engine blocks, transmission housings, turbine blades, and braking system components. Function: Rapid acquisition of high-density point cloud data for geometric tolerance analysis (e.g., flatness, roundness, position) by comparing with CAD models. Detects machining errors (e.g., burrs, deformation) to ensure compliance with industry standards.
Application Scenarios: Stamped sheet metal parts such as fenders, and chassis structural components. Function: Scan surface contours to analyze springback effects and optimize stamping die design parameters. Conduct full-size inspection (FAI) to detect minor wrinkles or cracks, reducing subsequent welding and assembly issues.
Application Scenarios: Injection molds, die-casting molds. Function: Scan worn molds and perform reverse engineering to generate 3D models for repair or remanufacturing guidance. Compare data from old and new molds to predict lifecycle and reduce downtime costs.
Application Scenarios: Critical production line stations. Function: Integration with robotic arms enables fully automated scanning. Real-time inspection reports are generated to monitor production trends and provide early deviation warnings.
Earbud Case by SHINING 3D on Sketchfab
years experience
authorized patents
3D scanners sold worldwide
Let's explore why SHINING 3D is the go-to choice for experts across various industries.
No. OptimScan Q12/Q9 HD doesn't have a color camera to capture the texture information of object.
OptimScan Q12/Q9 HD supports markerless scanning. For higher accuracy requirements, it can recognize 1mm, 2mm, or 4mm non-reflective markers.

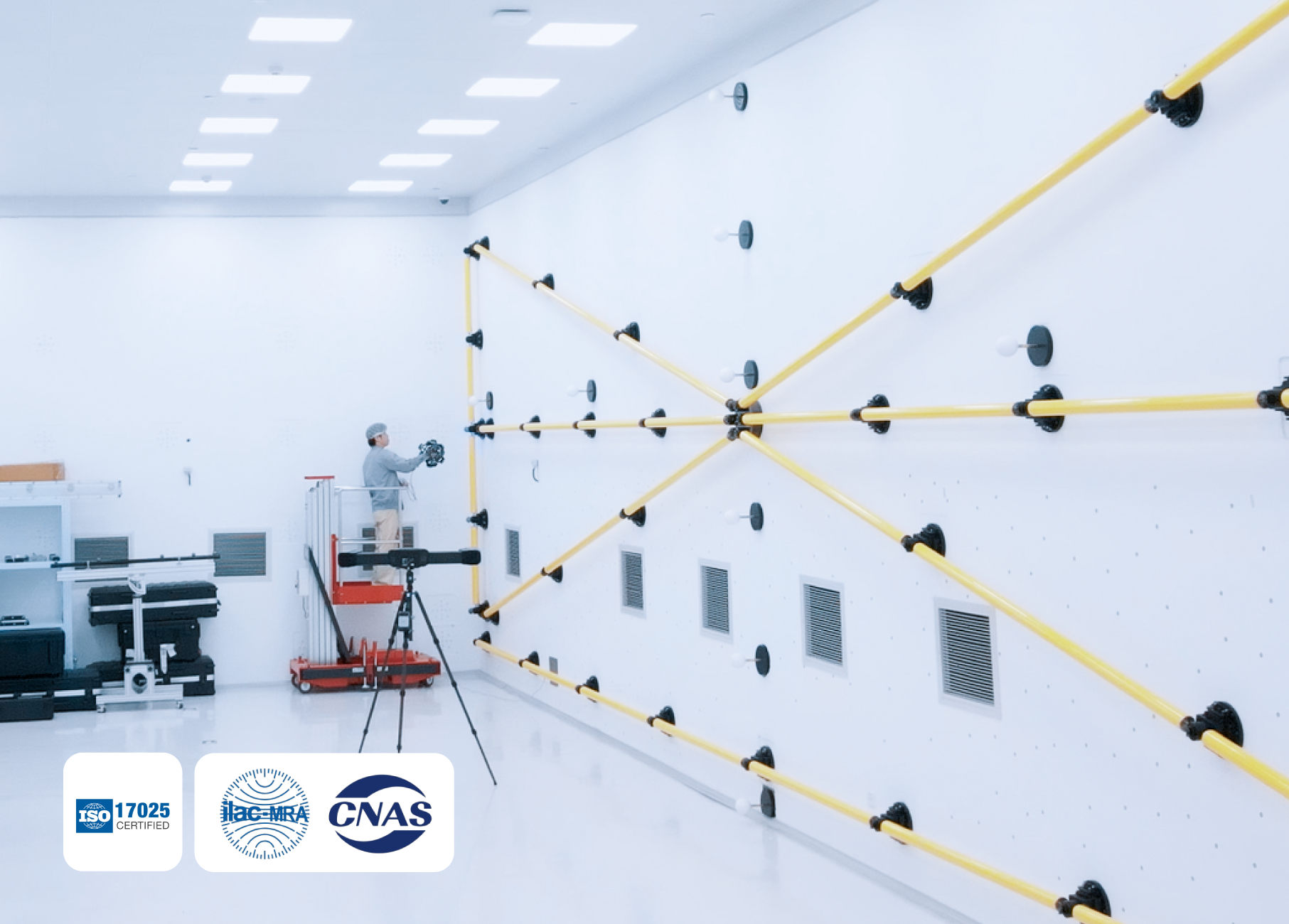

Yes. The scanner provides inspection reports and calibration certificates traceable to international standards such as VDI/VDE 2634 and ISO 10360 (subject to the actual certificates issued). All calibration and verification procedures are performed in SHINING 3D’s accredited Accuracy Lab, which operates in accordance with ISO/IEC 17025 requirements.
A handheld scanner offers flexibility and portability, making it ideal for scanning large, complex, or hard-to-reach parts. A fixed scanner is mounted in a stable position and is better suited for repetitive, high-precision scanning of smaller parts in controlled environments.
We recommend using OptimScan Q12/Q9 HD for small to medium-sized objects in high-precision application scenarios such as automotive, electronic, mold manufacturing and so on.
OptimScan Q12/Q9 HD software can be integrated with SHINING3D Inspect module, offering comprehensive functionalities such as Compare, Cross-Section, Feature, Dimension, Gauges, Report, and Quick Measurement, enabling diverse inspection requirements.
SHINING 3D scanners are calibrated using certified artifacts or calibration panels traceable to metrology standards. Regular calibration ensures measurement traceability, maintains accuracy, and aligns the scanner with quality management requirements.
OptimScan Q12/Q9 supports blue LED for data acquisition.
Blue LED: Projects grating patterns to capture dense surface data, excelling at fine textures, complex geometries, and small details.
